IEC 60529 IPX1/IPX2 Drip Box Water Test Chamber

◦ Water Flow Rate: 1,0-1.5 mm/min or 3,0 -3.5mm/min
◦ Turntable Speed: 1 r/min
◦ Test Duration: 10 minutes
◦ Compliance with International Standards
◦ High-Quality Stainless Steel Construction

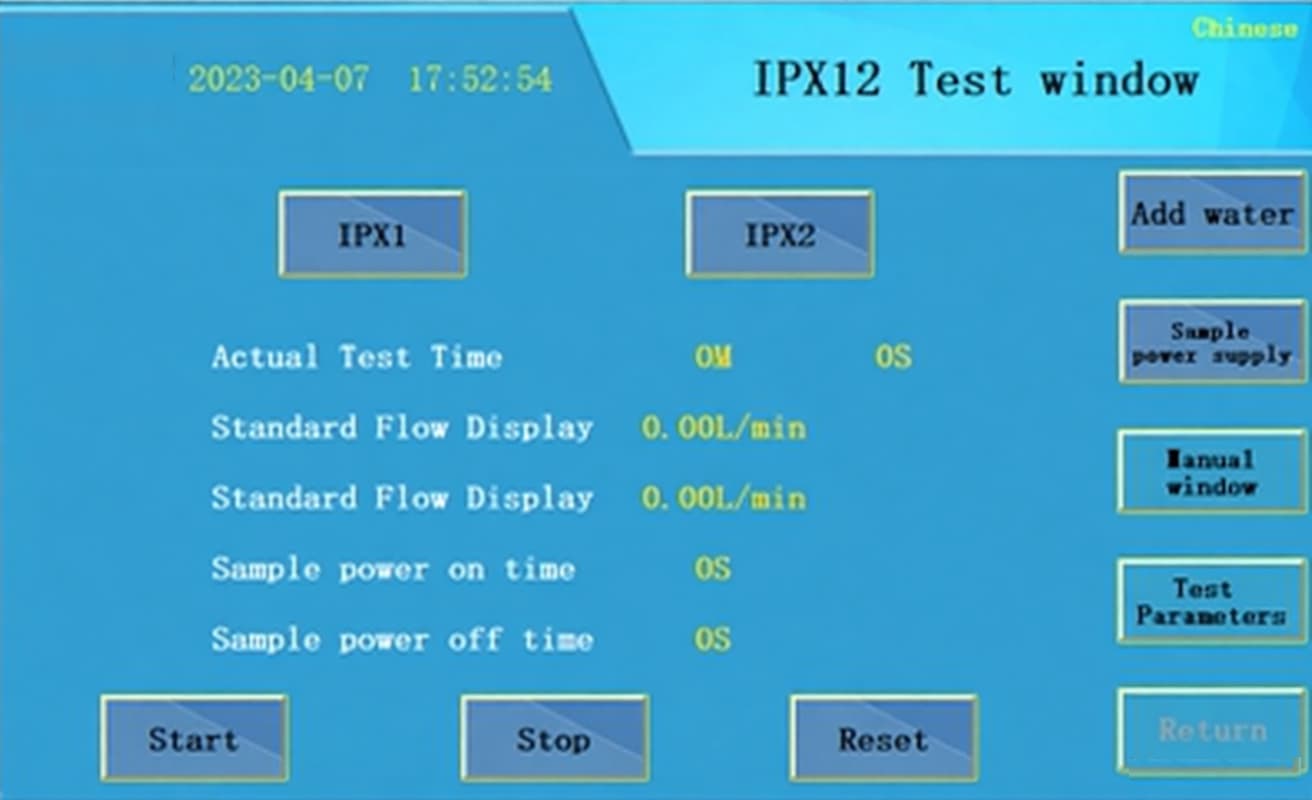

◦ User-Friendly Touchscreen Interface:
◦ Enhanced Safety Design:
Get Best Price
This device is a Professional IP Code Water Ingress Protection Test Device meticulously designed for verifying the lower levels of protection provided by enclosures for electrical equipment. Our Drip Box system is essential for product manufacturers seeking compliance with International Standard IEC 60529. It specifically covers the requirements for Degrees of protection against ingress of water indicated by the second characteristic numeral.
  • Standard Basis: The IP Code is a coding system used to indicate the degrees of protection provided by an enclosure against access to hazardous parts, ingress of solid foreign objects, and ingress of water. This equipment tests the protection of the equipment inside the enclosure against harmful effects due to the ingress of water.
  • Test Medium: All water tests (IPX1 to IPX9) are conducted with fresh water.

Detailed Specifications for IPX1 Test (Vertically Falling Water Drops)

The IPX1 rating verifies that the enclosure provides protection against vertically falling water drops.
        • Protection Requirement: Vertically falling drops shall have no harmful effects on the equipment.
        • Test Apparatus: The test is made using a specialized Drip box (Dripping device).
        • Setup: The enclosure under test is placed in its normal operating position on a turntable.
        • Test Conditions:
          ◦ Water Flow Rate: 1,0 mm/min (+0,5 mm/min; -0 mm/min) (precipitation height).
          ◦ Turntable Speed: Approximately 1 r/min.
          ◦ Test Duration: 10 minutes
Detailed Specifications for IPX2 Test (Dripping, 15° Tilted)
The IPX2 rating is designed to test protection against vertically falling water drops when the enclosure is tilted up to 15°.
  • Protection Requirement: Vertically falling drops shall have no harmful effects when the enclosure is tilted at any angle up to 15° on either side of the vertical.
  • Test Apparatus: The same Dripping device (Drip Box) is used, adjusted for a different flow rate.
  • Setup: The table on which the enclosure is placed does not turn. The enclosure is tested in four fixed positions of tilt. These positions are 15° on either side of the vertical in two mutually perpendicular planes.
  • Test Conditions:

    ◦ Water Flow Rate: 3,0 mm/min (+0,5 mm/min; -0 mm/min) (precipitation height).
    ◦ Duration per position: 2,5 min for each position of tilt.
    ◦ Total Test Duration: 10 minutes

Acceptance Conditions (Verification)

Upon completion of the tests, the enclosure shall be inspected for ingress of water. If any water has entered, it must not:
  1. Be sufficient to interfere with the correct operation of the equipment or impair safety.
  2. Deposit on insulation parts where it could lead to tracking along the creepage distances.
  3. Reach live parts or windings not designed to operate when wet.
  4. Accumulate near the cable end or enter the cable if any.
If the enclosure is provided with drain-holes, inspection must verify that any water which enters drains away without causing harm to the equipment.
Specification
Model
SHC-IPX12B-1200
Dripping area
1200*1200mm
Equipment inner box size
L1400*D1400*H1450mm
Outer dimension
L1840*D1600*H2150mm
Turntable diameter
800mm

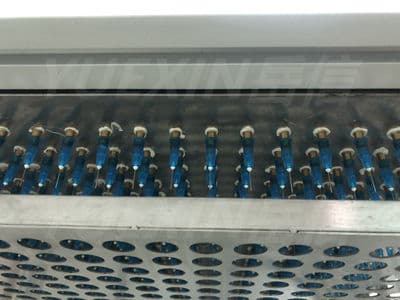

Nozzle aperture
0.4mm
Aperture distance
20*20mm
Dripping volume
1~1.5 mm/min(IPX1；3~3.5 mm/min(IPX2)
Flow adjustment
Manual adjustment (rotameter)
Turntable lifting height
400-600mm
Turntable weight
80KG
Turning speed
1 r/min (IPX1) or custom setting
Turntable decline degree
0 ° or 15 ° (horizontal direction)
Test time
0-999 min
Protection device
Leakage, water shortage, short circuit
Voltage(V)
220V
Power(KW)
1.0KW
The reference standard
ISO20653:2013；IEC60529:2013；IEC60598:2021；DIN40050-9:1993



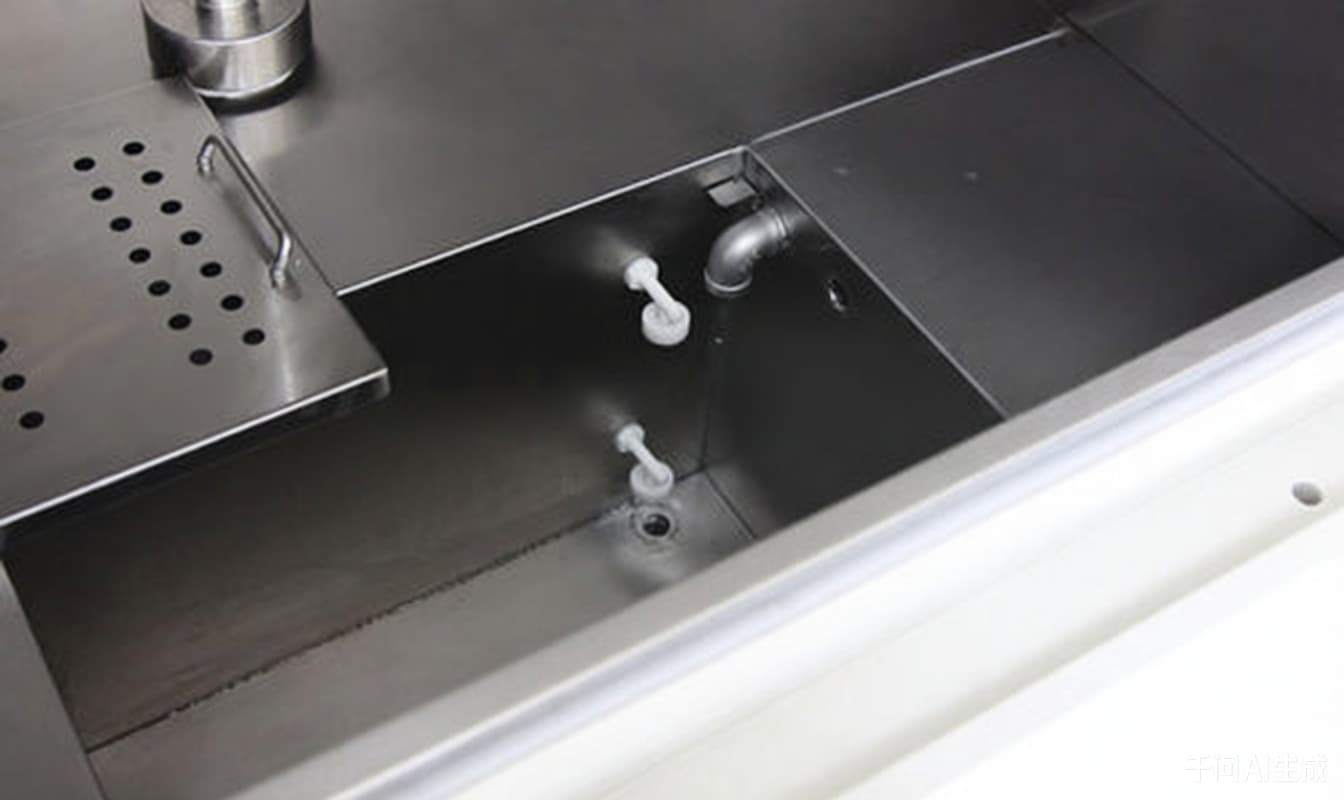

IEC 60529 IPX1/IPX2 Drip Box Water Test Chamber | Vertical & 15° Tilted Dripping Water Ingress Protection Verification Equipment IEC 60529 IPX1/IPX2 Drip Box Water Test Chamber | Vertical & 15° Tilted Dripping Water Ingress Protection Verification Equipment

Model
SHC-IPX12B-1200
Dripping area
1200*1200mm
Equipment inner box size
L1400*D1400*H1450mm
Outer dimension
L1840*D1600*H2150mm
Turntable diameter
800mm
Nozzle aperture
0.4mm
Aperture distance
20*20mm
Dripping volume
1~1.5 mm/min(IPX1；3~3.5 mm/min(IPX2)
Flow adjustment
Manual adjustment (rotameter)
Turntable lifting height
400-600mm
Turntable weight
80KG
Turning speed
1 r/min (IPX1) or custom setting
Turntable decline degree
0 ° or 15 ° (horizontal direction)
Test time
0-999 min
Protection device
Leakage, water shortage, short circuit
Voltage(V)
220V
Power(KW)
1.0KW
The reference standard
ISO20653:2013；IEC60529:2013；IEC60598:2021；DIN40050-9:1993
